Edwards Oil Sealed Rotary Pump E2M175

>>Edwards Oil Sealed Rotary Pump E2M175

The Edwards E2M175 range of direct drive Rotary Vane Pumps are inherently compact and vibration free with their finger-proof fan and coupling housings and they offer excellent operator protection.

The pump is water-cooled but may be operated without water-cooling for high vacuum duties. The different models are each optimized to give the best combination of performance, reliability and cost in relation to the anticipated applications.

These pumps are available in two stage designs in sizes up to 196 m 3 h-1.

Edwards Oil Sealed Rotary Pump E2M175

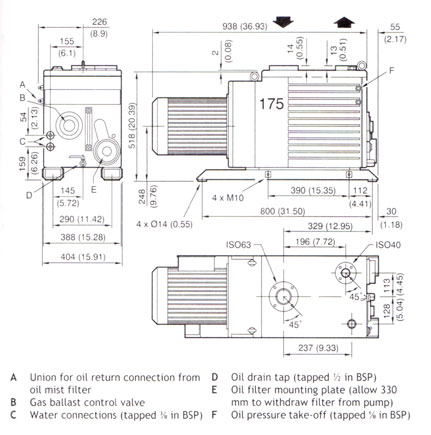

Dimensions Ordering Information
  Product description Order Number
EM175 Industrial E2M175 220-240 V or 380-415 V, 3-ph, 50 Hz A36601935
  E2M175 208-230 V or 460 V,3-ph,60 Hz,4-pole A36603982
EM175 PFPE* E2M175FX 220-240 V or 380-415 V,3-ph,50 Hz A36615935
  E2M175FX 208-230 V or 460 V, 3-ph, 60 Hz A36616982
EM175 ATEX** E2M175T3 400 V, 3-ph, 50 Hz A36618993

Ultragrade 70 oil, NW40 O-ring and centering ring, ISO 40 "C" clamp, bolts, washers, 28 mm external diameter coupling tube and compression sleeve for outlet, ISO 25 "C" clamp, bolts and washers supplied with each pump

*No oil supplied
**ATEX EM pumps may be supplied with ATEX classification either as part of a pump system or stand-alone, on application. Please consult Edwards.

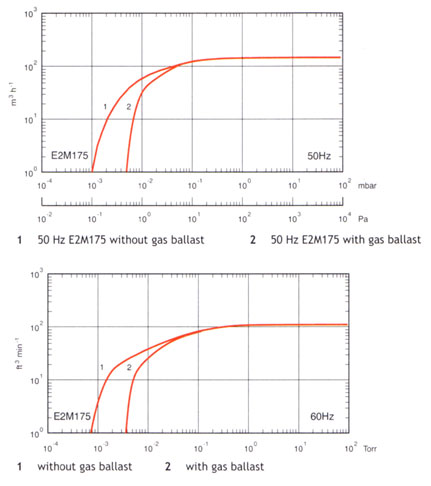

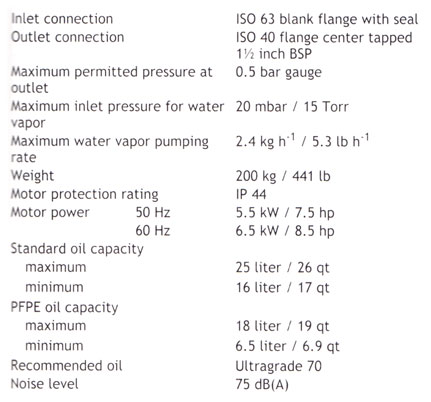

Technical Data Speed and Power Curves
