OmegaVac Vacuum Products will assist you in obtaining your vacuum products and equipment, from repair or replacement parts to vacuum pumps, booster vacuum systems and pumps to any other vacuum product to help in managing your facility.
Rotary Piston Vacuum Pump Manufacturer by Hamilton Vacuum Pumps
Rotary Piston Vacuum Pumps

>>Models of Rotary Piston Vacuum Pumps

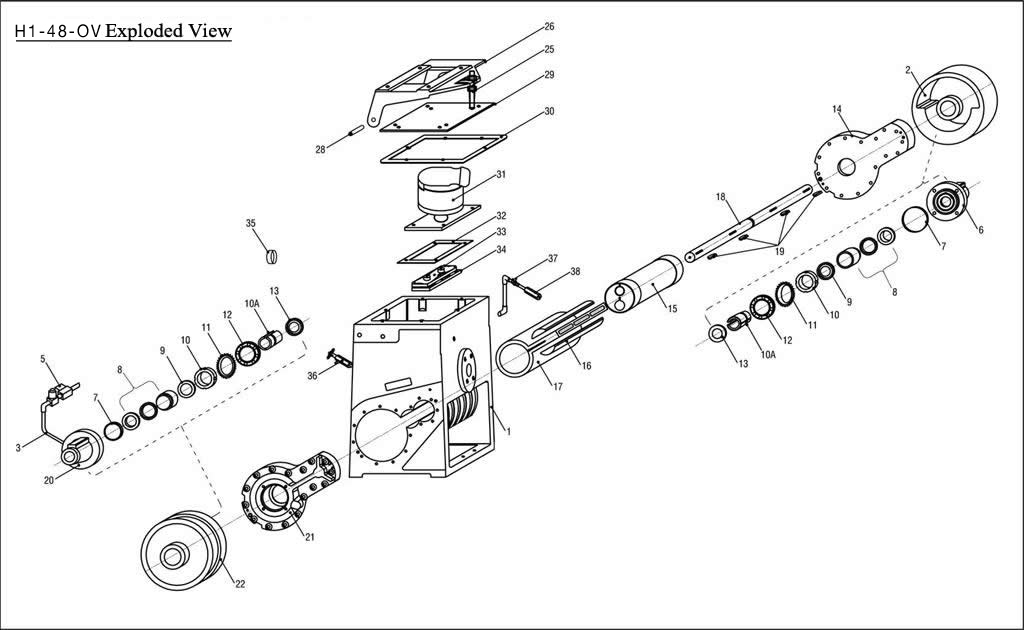

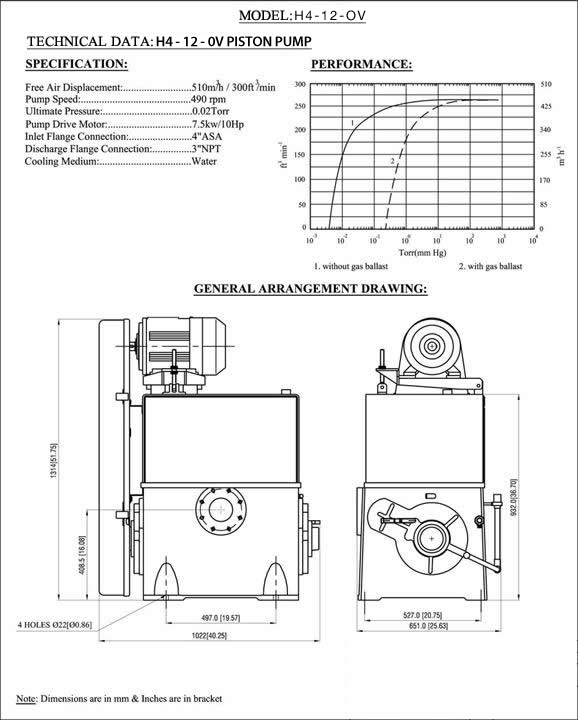

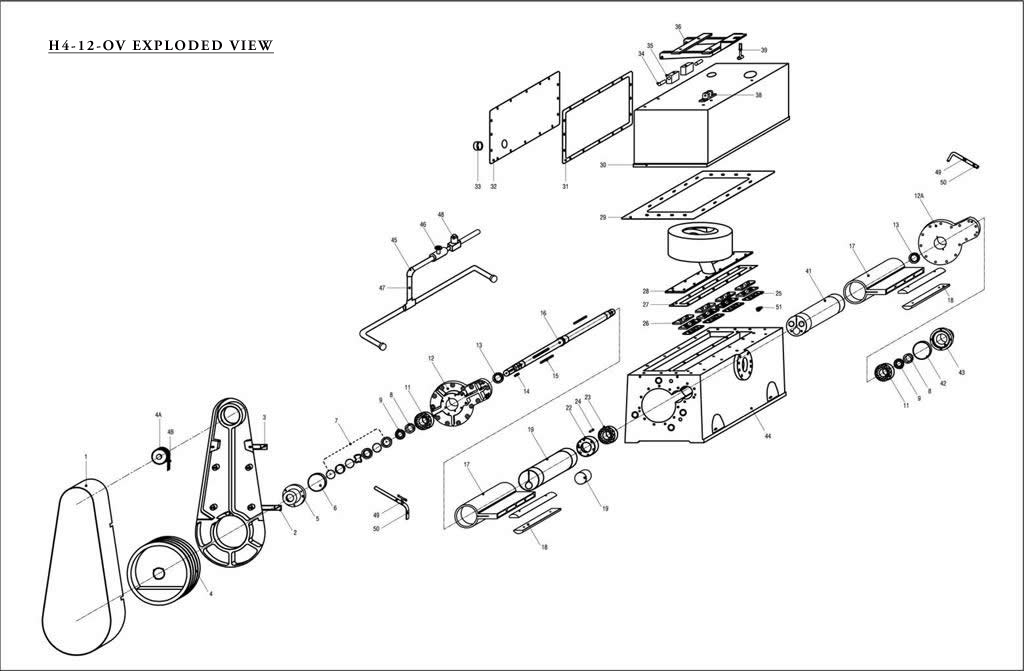

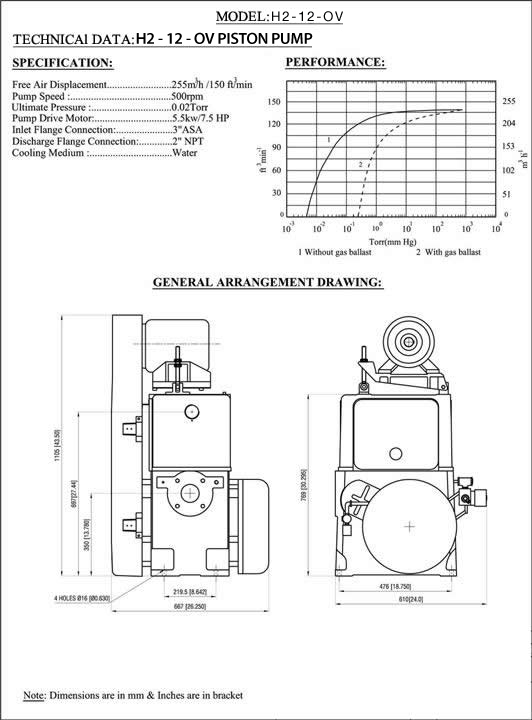

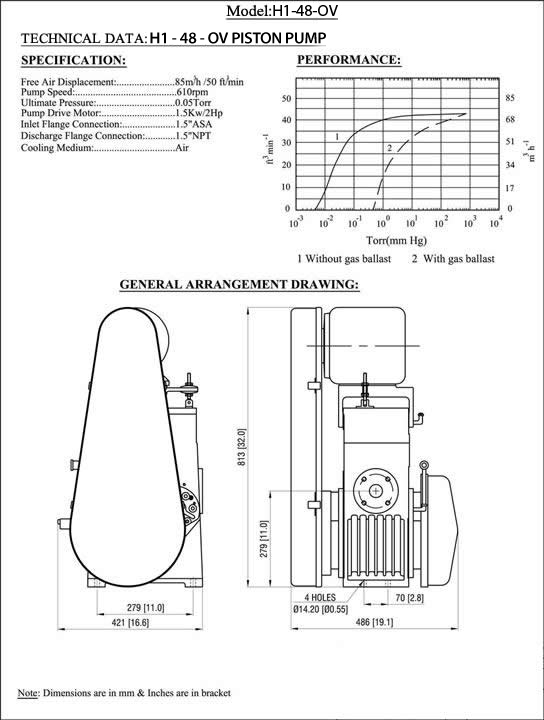

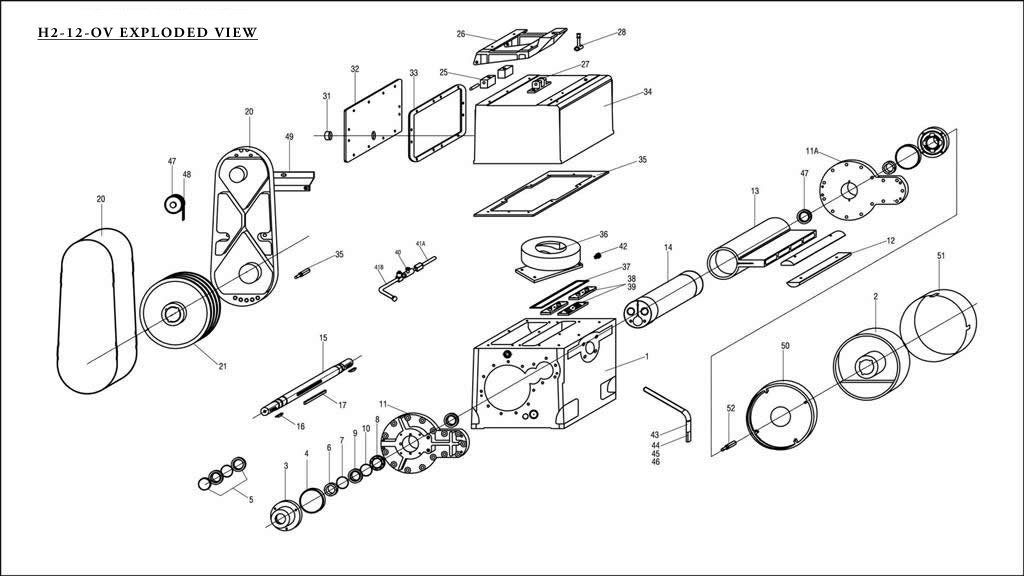

Model Numbers Assembly Description Displacement Pump Motor Technical Data Exploded View Part List

H1-48-OV
H2-12-OV
H4-12-OV
H6-12-OV

50 CFM Rotary Piston Pump
150 CFM Rotary Piston Pump
300 CFM Rotary Piston Pump
2-300 CFM Rotary Piston Pump
CFM CMH
50
85
150
255
300
510
600
1020
(RPM-HP)
1800-2
1800-7.5
1800-10
1800-10

Click Here
Click Here
Click Here
Click Here

Click Here
Click Here
Click Here


Click Here
Click Here
Click Here




STOKES/EDWARDS AND HAMILTON VACUUM NOMENCLATURE Equivalents FOR REFERENCE
(Stokes and Edwards are a registered Trademark of Edwards Vacuum)
Rotary Piston Pump Displacement  Description  Rotary Piston Pump Displacement Description
Stokes/Edwards Hamilton Vacuum
Stokes 148-H 50 CFM Discontinued H1-48-OV 50 CFM 50 CFM Rotary Piston
Stokes 212-J 150 CFM 900-212-014 H2-12-OV 150 CFM 150 CFM Rotary Piston
Stokes 412-J 300 CFM 900-412-014 H4-12-OV 300 CFM 300 CFM Rotary Piston
Stokes 612-J 600 CFM 900-612-014 H6-12-OV 600  CFM 2-300 CFM Rotary Piston


>>Features of Rotary Piston Vacuum Pumps

  • Cost Effective Rotary Piston Vacuum Pumps
  • Performance and Durability at a reduced cost
  • Inlet traps, Exhaust Filters, Fluids available
  • All Spare Parts are Available in Stock
  • Three Years Warranty on Material & Manufacturing Defects



>>Applications for Rotary Piston Vacuum Pumps

  • Vacuum Heat Treating
  • Vacuum Brazing
  • Vacuum Coating
  • Transformer Drying
  • Degasification System
  • Shelf Drying
  • Vacuum Casting
  • E-Beam Welding
  • Solar Cell Lamination
  • Oil Reclamation
  • Sintering Process
