Edwards Oil Sealed Rotary Pump E2M40

>>Edwards Oil Sealed Rotary Pump E2M40

The Edwards E2M40 range of direct drive Rotary Vane Pumps are inherently compact and vibration free with their finger-proof fan and coupling housings and totally enclosed fan-cooled motors, they offer excellent operator protection.

The EM pumps are fan-cooled to give the best combination of performance, reliability and cost in relation to the anticipated applications.

These pumps are available in two stage designs in sizes up to 44 m3h-1.

Edwards Oil Sealed Rotary Pump E2M40

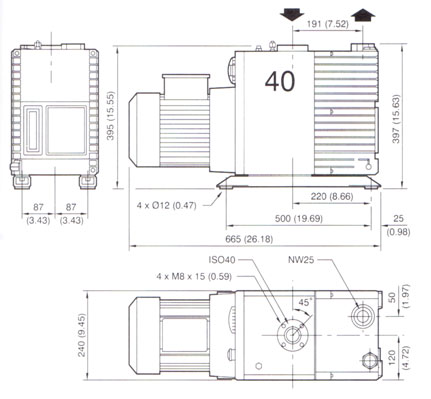

Dimensions Ordering Information
  Product description Order Number
EM40 Industrial E2M40 220-240 V or 380-415 V, 3-ph, 50 Hz A36401935
  E2M40 208-230 V or 460 V, 3-ph, 60 Hz A36402982
EM40 PFPE* XDS10 1ph, 115V/230V 50/60Hz set to 230V A36411935
  E2M40FX 208-230 V or 460 V, 3-ph, 60 Hz A36412982
EM40 ATEX** E2M40T4 400 V, 3-ph, 50 Hz A36418993

Ultragrade 70 oil, NW40 0-ring and centering ring, ISO 40 "C" clamp, bolts, washers, 28 mm external diameter coupling tube and compression sleeve for outlet, ISO 25 "C" clamp, bolts and washers supplied with each pump

*No oil supplied

**ATEX EM pumps may be supplied with ATEX classification either as part of a pump system or stand-alone, on application. Please consult Edwards.

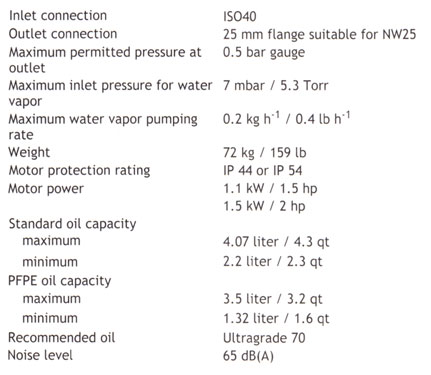

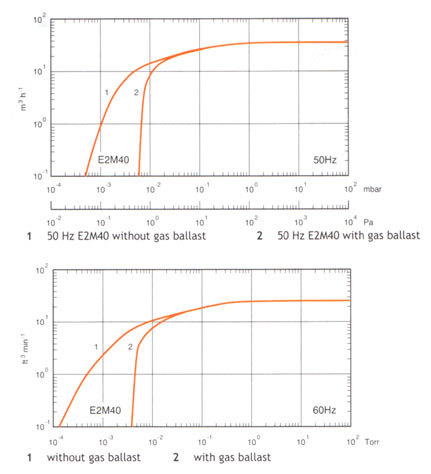

Technical Data Speed and Power Curves
